Make your first steps with the new VITA 93 - QMC mezzanine standard.

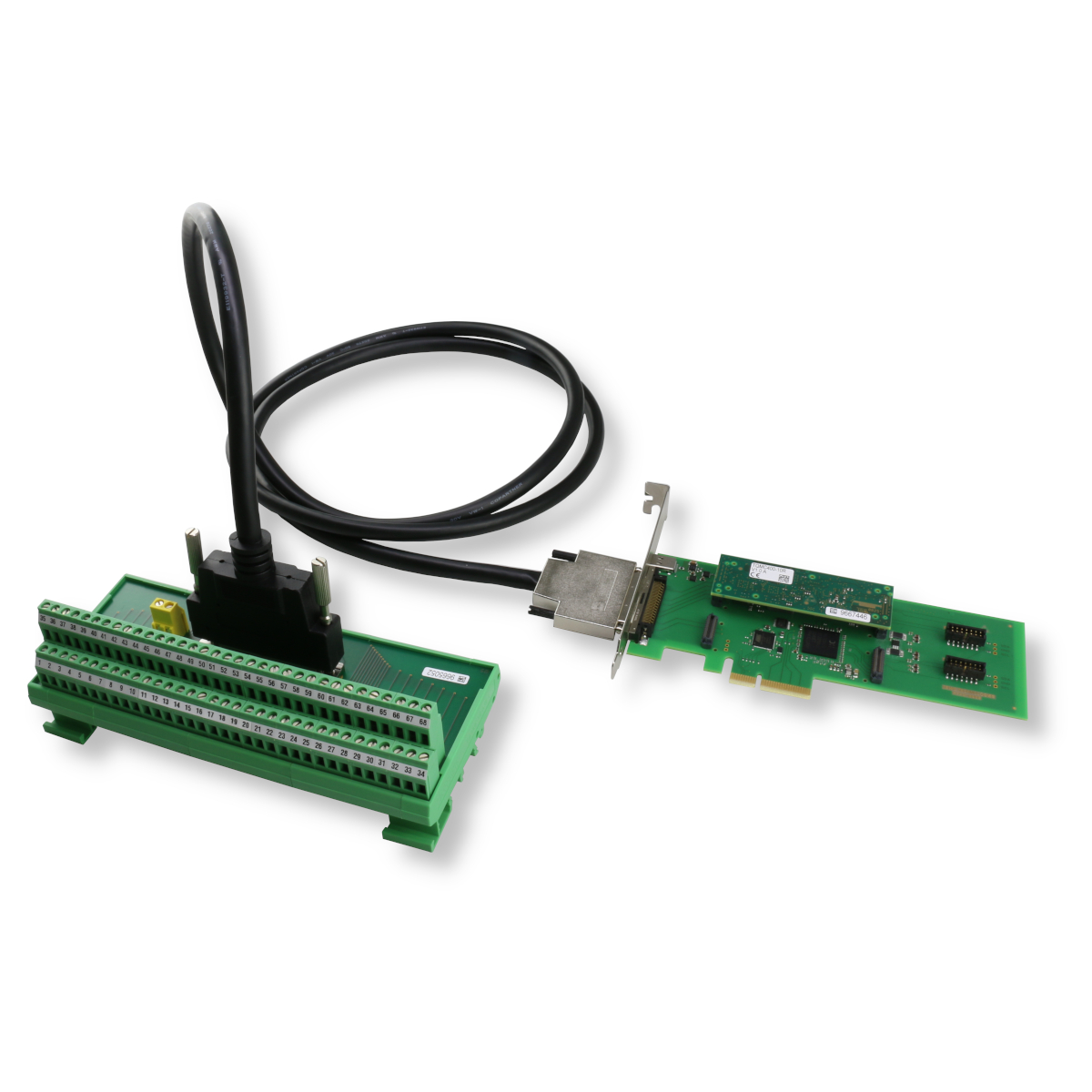

The QMC Starter Kit is the perfect solution for gaining first experiences, showcasing, evaluating, and prototyping the true potential. The Starter Kit will include the following products:
The TQMC400 is a VITA 93.0 compatible Small Form Factor Mezzanine Card (QMC) offering 4 UART channels with multiprotocol transceivers and Full-Modem support. Each channel can be programmed to operate as an RS232, RS422/RS485 fullduplex or RS485 half-duplex interface.
The PCI-Express Carrier TPCE210 allows the integration of up to two QMCs into any system with a PCI-Express Add-in Card slot. An on-board Management Controller (IPMC) allows access to the QMC’s FRU EEPROM and sensors. Ideal for surveillance of the QMC’s health status.
The Cable Kit TA307 combines the TA203 HD68 Terminal Block and the TA109 VHD68 – HD68 cable. It allows easy access to the QMC’s I/O signals.
Software support (device driver) for different operating systems is available.
VITA 93 – The Next Generation Flexible Mezzanine Concept
The new VITA 93 – QMC standard addresses the inherent challenges in current mezzanine card standards through its innovative QMC architecture, enabling unprecedented modularity, flexibility, and scalability while maintaining backward compatibility and rugged reliability. VITA 93 – QMC builds on lessons learned from previous standards, blending their best features with new capabilities for the future.
