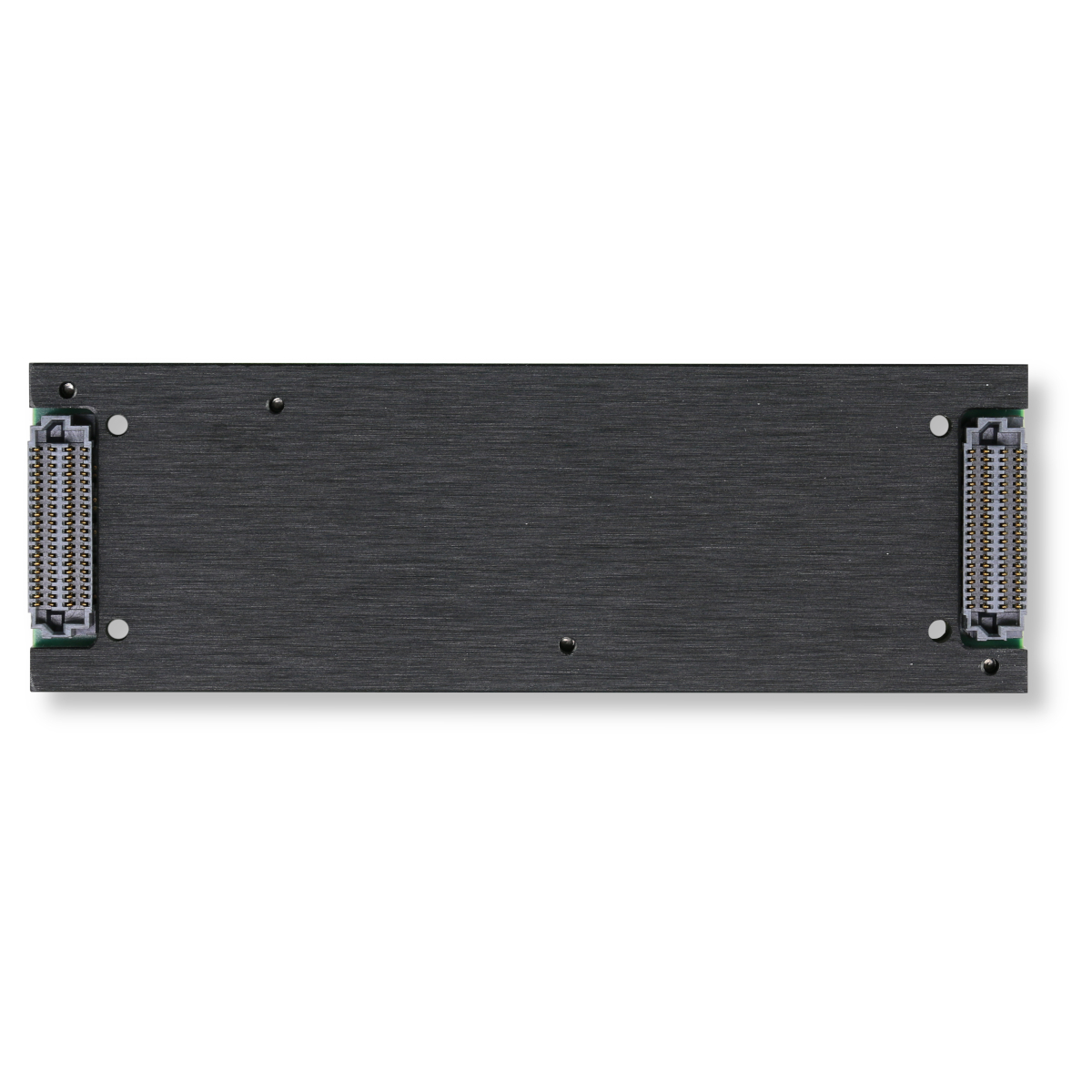

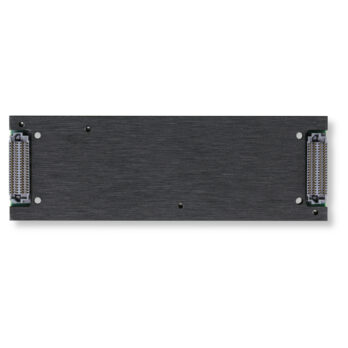

The TQMC500 is a standard single-width QMC module conforming to the VITA 93.0 standard for small form factor (SFF) mezzanine modules. This versatile QMC module offers 20 channels of isolated 16 bit simultaneous sampling analog input.
The ADCs offer true differential or single-ended inputs with multiple software selectable input voltage ranges (individual setting per channel). The sampling rate is up to 800 kSPS and the ADC offers an oversampling capability with digital filter.
Each ADC provides a 1024 sample FIFO with programmable trigger levels. Data transfer is handled by TQMC500 initiated DMA cycles with minimum host / CPU intervention.
