TVNX210

VNX+ Carrier with 2 QMC Sites, PCIe Gen 3 x4, Rear I/O

  • VNX+ 19mm Plug-In Module (ANSI/VITA 90.0-2026)
  • Dual QMC Carrier VITA 90.1 slot profile
  • Flexible and modular solution to provide I/O in the VNX+ environment
  • Supports two single QMCs or one double QMC
  • 2 single-width QMC Sites
    • PCIe Gen3 x4 from host to QMCs
    • Full QMC I/O to VNX+ backplane
  • VITA 46.11 Management Controller

Product status: In Development

Operating Temperature Range -40 °C to +85 °C RoHS complaint

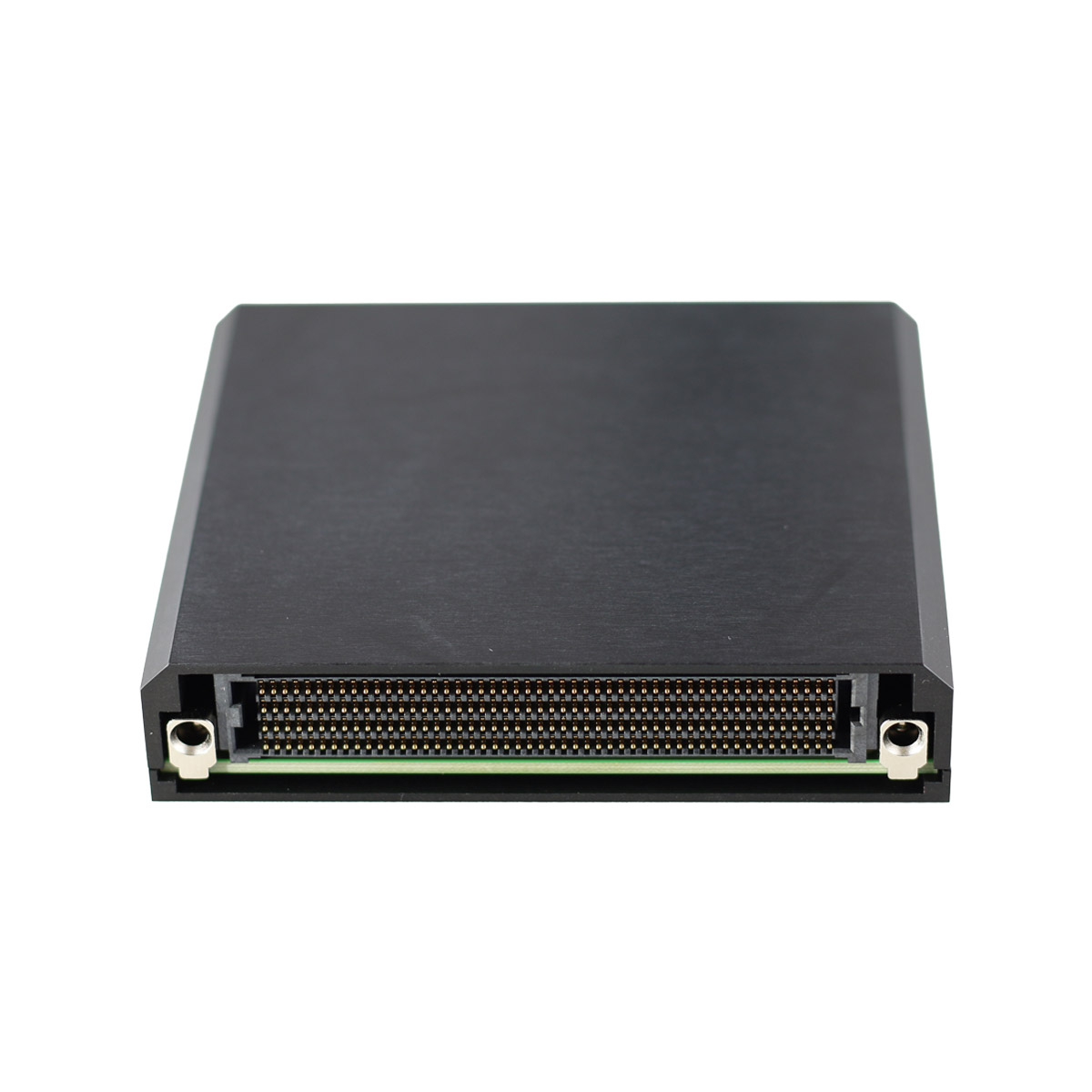

The TVNX210 is a VITA 90 compatible 19 mm VNX+ Plug-In Module (PIM) designed to provide system integrators with the flexibility and modularity they need when building high-performance I/O subsystems for a defense or aerospace platform.

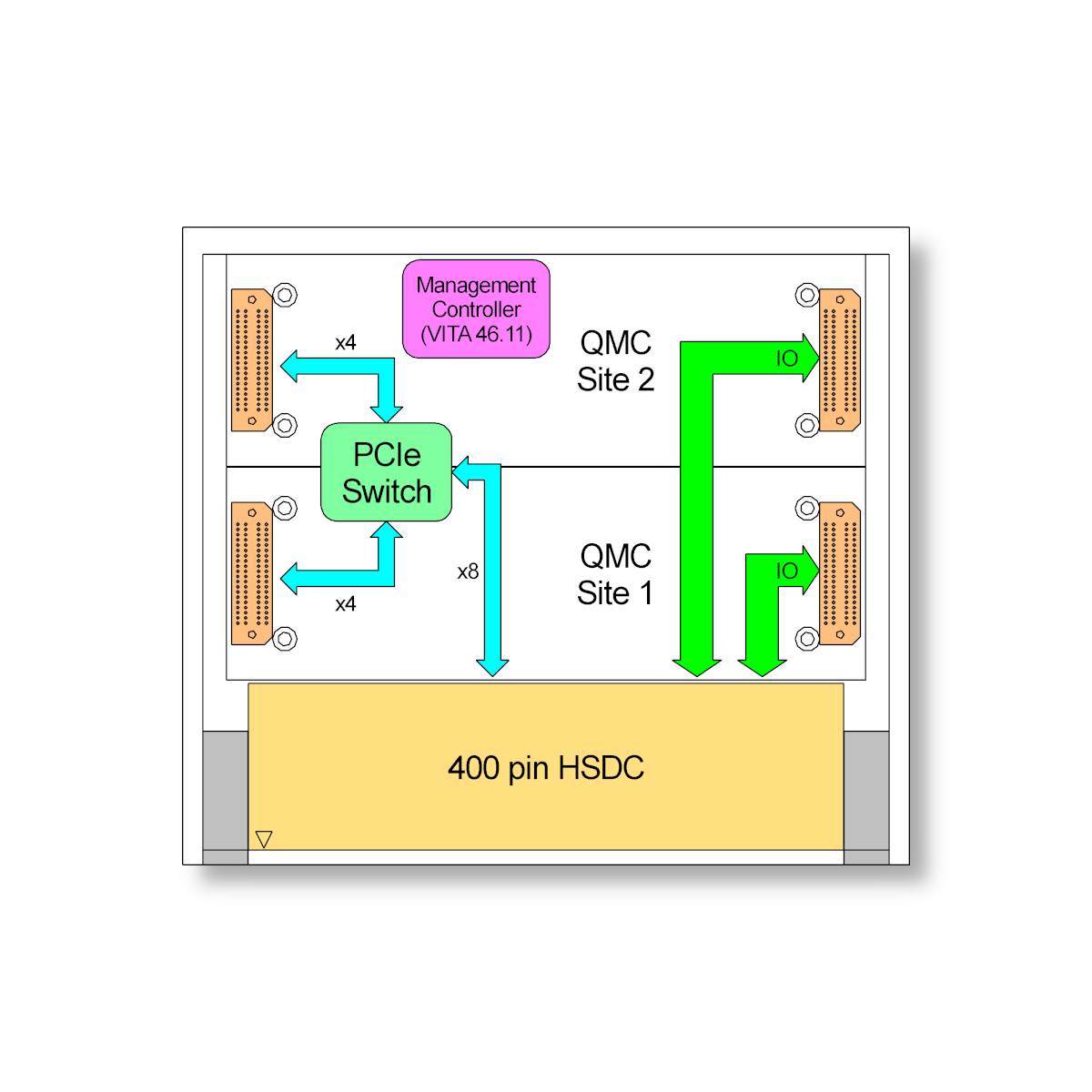

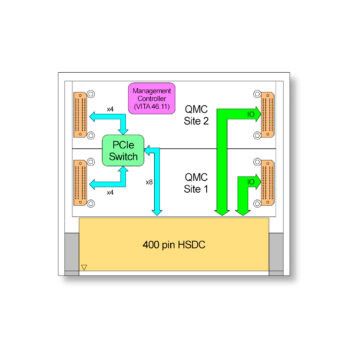

The VNX+ QMC carrier provides two independent single-width QMC sites that can be populated with up to two single-width QMC modules or a double-width QMC module. The QMC sites are connected via a non-blocking PCIe Gen 3 switch that distributes the VNX+ backplane's x8 PCIe links from the expansion plane or the two x4 PCIe links from the data planes.

The full QMC I/O of the two QMC sites is accessible on the VNX+ backplane via the 400-pin High Speed Data Connector (HSDC), conforming to the VITA 90.1 Dual QMC Carrier slot profile (VNX.PL-1-02.400-7.2.1.3).

A Management Controller implemented according to VITA 46.11 allows QMC health status monitoring and communication with the  VNX+ System Management.

Mechanical Interface VNX+ Plug-In Module (ANSI/VITA 90.0-2026)
VITA 90.1 Slot Profile VNX.PL-1-02.400-7.2.1.3 <Dual QMC Carrier>
Electrical Interface PCIe Revision 3.1 Gen3 x4
Number of QMC Sites 2 single-width
Supported QMCs 2x single-width
1x double-width
QMC Interface PCIe Gen3 x4
QMC I/O Isolation No
QMC I/O Connection Complete I/O of all QMC sites on VNX+ HSDC-400 connector
I/O Connectors VNX+ HSDC-400 connector (Rear I/O)
Temperature Range Operating: -40 °C to +85 °C
Storage: -40 °C to +85 °C
MTBF Contact factory
Humidity 5% – 95% non-condensing

PRODUCT VARIATIONS

TVNX210-10R

VNX+ Carrier with 2 QMC Sites, PCIe Gen 3 x4, Rear I/O

2 single-width QMC Sites, double-width compatible; Full QMC I/O to VNX+ backplane; PCIe Gen 3 x4
Data Sheet

Data Sheet

Data Sheet - Issue 1.0.2
