THE NEXT GeNERATION Flexible Mezzanine Concept

VITA 93 – QMC

The VITA 93 – QMC mezzanine card standard, under development by the VITA Standards Organization and expected to be released in spring 2025, is set to revolutionize embedded computing systems. It will bring higher bandwidth, unprecedented modularity, flexibility, and scalability, leading to enhanced system performance and adaptability.

VITA 93 – QMC cards, more compact and powerful than previous standards, offer a single design for air- and conduction-cooled systems, PCIe Gen6 up to x16, IPMI system management, and high-density I/O. Their versatility makes them ideal for a wide range of applications in industrial automation, transportation, testing, medical, and more. TEWS Technologies offers expertise in implementing these solutions with COTS, modified, or custom designs, opening up a world of possibilities.

Leveraging its expertise in PCIe-based solutions like XMC and mPCIe, TEWS Technologies wants to position itself as one of the market leaders for the new standard, building up a comprehensive product portfolio covering simple I/O to high-performance FPGAs and various carrier solutions.

For certain applications where the primary use of this might be an I/O interface, I think you can’t get much smaller than a single QMC. I would say this is pretty close to what we can expect at least for the next 10 years.

Dean Holman

President, VITA

Modular

Flexible

Scalable

Rugged

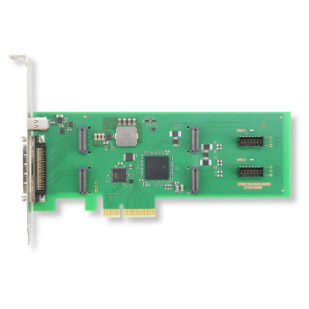

TPCE210 | PCI Express x4, Gen 2, Dual QMC Carrier

TPCE210

PCI Express x4, Gen 2, Dual QMC Carrier

  • Low-profile PCI Express Revision 2.0 compatible module
  • Cost effective solution to provide I/O in PCI Express environment
  • Flexible I/O (TEWS offers a wide range of QMCs)
  • Supports two single QMCs or one double QMC
  • Provides QMC front panel I/O via VHDCI-68 Connector
  • Management Controller for surveillance of QMC health status
VIEW FULL SPECIFICATIONS

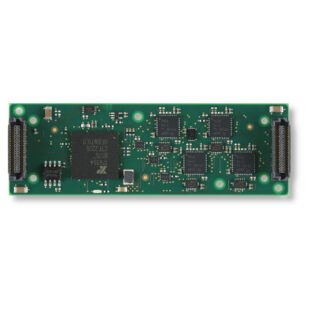

TQMC400 I 4 Channel Full-Modem RS232/RS422/RS485 Programmable Serial Interface QMC Module

TQMC400

4 Channel Full-Modem RS232/RS422/RS485 Programmable Serial Interface

  • Standard single QMC module conforming to VITA 93.0
  • 4 UART channels with programmable RS232 / RS422 / RS485 interfaces
  • High performance asynchronous serial interface (up to 20 Mbps)
  • Software selectable 120 Ω Termination for each RS422/RS485 channel
  • Hardware handshake support available
  • Half-duplex mode available
  • 256 byte FIFO
VIEW FULL SPECIFICATIONS

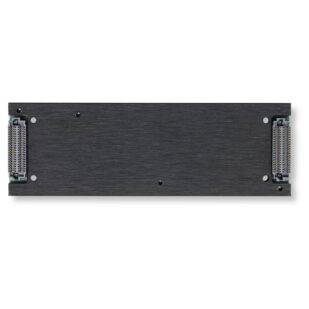

TQMC401 I 4 Channel High Speed Sync/Async Serial Interface QMC Module

TQMC401

4 Channel High Speed Sync/Async Serial Interface

  • Standard single QMC module conforming to VITA 93.0
  • 4 channels high speed serial data communication
  • Several communication protocols
  • asynchronous (with oversampling)
  • isochronous
  • HDLC
  • 512 longword FIFO (512 x 32 bit) per channel
  • DMA support
  • Different signal encodings (NRZ, NRZI, FM0, FM1 and Manchester)
  • Multiple clock sources (for a wide bitrate spectrum)
VIEW FULL SPECIFICATIONS
TQMC600 I Reconfigurable FPGA with Digital I/O QMC Module

TQMC600

Reconfigurable FPGA with Digital I/O

  • Standard single QMC module conforming to VITA 93.0
  • User programmable FPGA
  • 32 TTL lines, 5 V tolerant or 16 differential I/O lines (EIA-422 / EIA-485 compatible) or 16 differential Multipoint-LVDS lines
  • ESD protected I/O lines
  • Each I/O line is individually configurable (e.g. direction)
  • 3 state TTL output (high, low, and tristate)
  • Onboard termination for differential I/O lines
VIEW FULL SPECIFICATIONS
TQMC700 I Reconfigurable FPGA with AD/DA & Digital I/O QMC Module

TQMC700

Reconfigurable FPGA with AD/DA & Digital I/O

  • Standard single QMC module conforming to VITA 93.0
  • User programmable FPGA
  • 16 TTL lines
    • 5 V-tolerant
    • ESD-protected
    • Each I/O line is individually configurable (e.g. direction)
    • 3 output states (high, low, and tristate)
  • 8 channels 18 bit ADC
    • Offering single-ended and differential mode
    • 8 individually selectable voltage input ranges (up to ±12.5 V)
    • Sampling rate up to 1 Msps
  • 4 channels 16 bit DAC
    • 4 individually selectable voltage output ranges (up to ±10.8 V)
    • 10 μs conversion time
  • Factory correction data for ADC and DAC
VIEW FULL SPECIFICATIONS
TQMC701 I 8 Single-Ended / Differential A/D Channels, 4 D/A Channels and 16 Digital I/O Channels QMC Module

TQMC701

8 Single-Ended / Differential A/D Channels, 4 D/A Channels and 16 Digital I/O Channels

  • Standard single QMC module conforming to VITA 93.0
  • PCI Express 2.1 compliant interface
  • DMA support
  • 8 channels 16 bit analog input
    • Offering single-ended and differential mode
    • 8 individually selectable voltage input ranges (up to ±12.5 V)
    • Sampling rate up to 1 Msps
  • 4 channels 16 bit analog output
    • 4 individually selectable voltage output ranges (up to ±10.8 V)
    • 10 μs conversion time
  • 16 TTL lines
    • 5 V-tolerant
    • ESD-protected
    • Each I/O line is individually configurable (e.g. direction)
    • 3 output states (high, low, and tristate)
  • Factory correction data for ADC and DAC
VIEW FULL SPECIFICATIONS
TQMC800 I 1 Channel 1000BASE-T Ethernet QMC Module

TQMC800

1 Channel 1000BASE-T Ethernet

  • Standard single QMC module conforming to VITA 93.0
  • One Channel 1000BASE-T / 100BASE-TX / 10BASE-T Ethernet
  • PXE and iSCSI boot (16 Mbit serial flash)
  • IEEE 1588/802.1AS Precision Time Protocol (PTP)
  • IEEE 802.1Qav Audio/Video Bridging (AVB) traffic shaping
VIEW FULL SPECIFICATIONS
VITA 93 - QMC White Paper
Advancing Embedded Systems with VITA 93 - QMC: A New Era in Modular I/O Solutions
WHITEPAPER

Advancing Embedded Systems with VITA 93 - QMC: A New Era in Modular I/O Solutions

This white paper explores how the new VITA 93 - QMC standard addresses the inherent challenges in current mezzanine card standards through its innovative QMC architecture, enabling unprecedented flexibility and scalability while maintaining backward compatibility and rugged reliability. It also covers how VITA 93 - QMC builds on lessons learned from previous standards, blending their best features with new capabilities for the future.

Technical Overview

  • Base Size: 26 mm x 78.25 mm
  • 4.7 mm Component Height
  • PCIe Gen6 Capable, up to x16
  • Seamless integration into managed systems (IPMI)

I/O Capabilities

  • 40 I/Os per single QMC
  • Organized as 5 IOPIPEs
  • Support of isolated interfaces
  • Up to 160 I/Os per quad QMC

Thermal Management

  • Same PCB design for air- and conduction-cooled systems
  • Skyline heatsinks
  • Well thought out concept allows interoperability between vendors

Upcoming Events

July 1, 2025
1:00 pm ET / 12:00 pm CT / 10:00 am PT/ 6:00 pm GMT

Electronic Design

In this webinar, hosted by Bill Wong from Electronic Design, a panel consisting of Mark Littlefield (Senior Manager of Embedded Computing at Elma Electronic), Matthew Burns (Director of Technical Marketing at Samtec) and Jan Zimmermann (General Manager at TEWS Technologies) will introduce the new VITA 93 QMC standard.

The webinar is free to all registered Electronic Design users. Please visit the event page here.

Electronic Design

Past Events

January 13-15, 2025

San Antonio, USA

At the 2025 Embedded Tech Trends in San Antonio, USA the new VITA 93 QMC standard was presented for the first time to the general public during a joint presentation from Mark Littlefield (Senior Manager of Embedded Computing at Elma Electronic), Jan Zimmermann (General Manager at TEWS Technologies), and Robert Greenfield (Business Development Manager at Acromag).

Embedded Tech Trends Logo

Make your first steps with the new VITA 93 - QMC mezzanine concept. The QMC Starter Kit is the perfect solution for gaining first experiences, showcasing, evaluating, and prototyping the true potential.

TEWS Technologies GmbH will release a QMC Starter Kit in the first quarter of 2025. Subscribe to our newsletter to be the first to know when it becomes available and secure early access.

The Starter Kit will include the following:

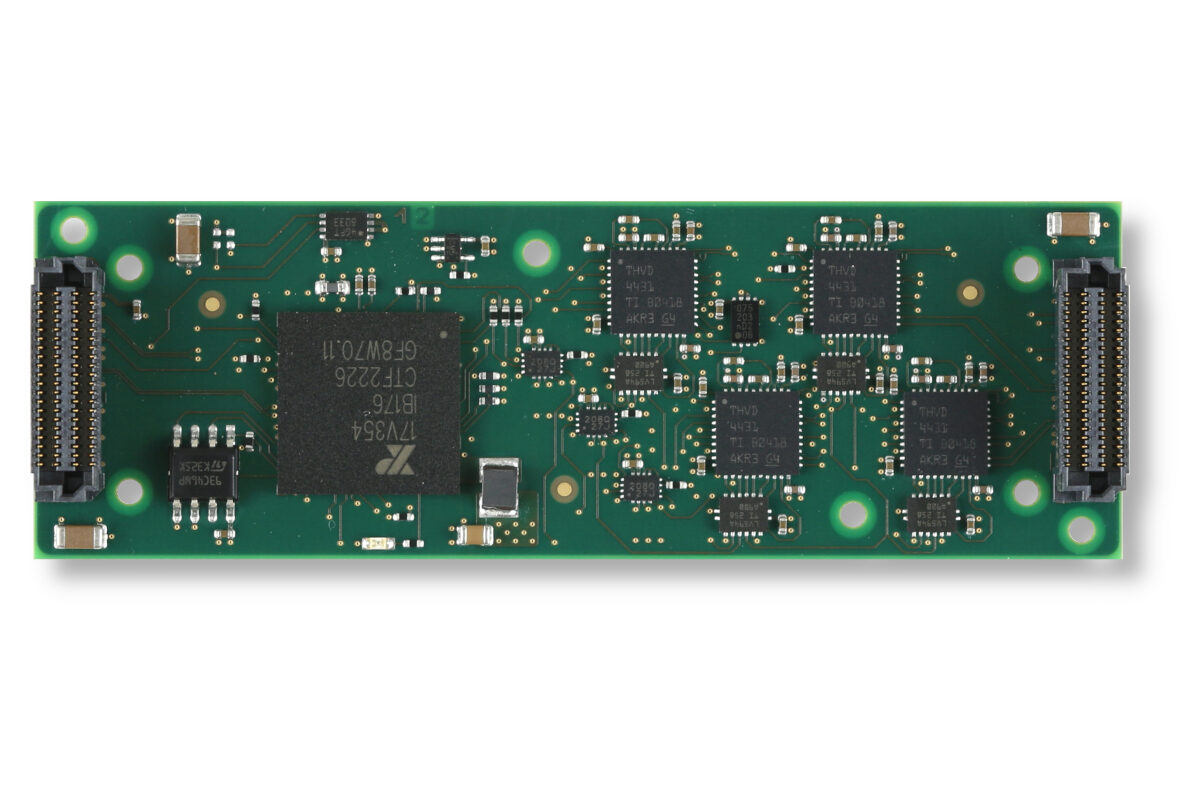

VITA 93 - Quad UART QMC Module

Quad UART QMC

  • Single size QMC Module
  • Multiprotocol transceiver offering RS232/RS422/RS485
  • Operating temperature -40 °C to +85 °C
  • Air-Cooled

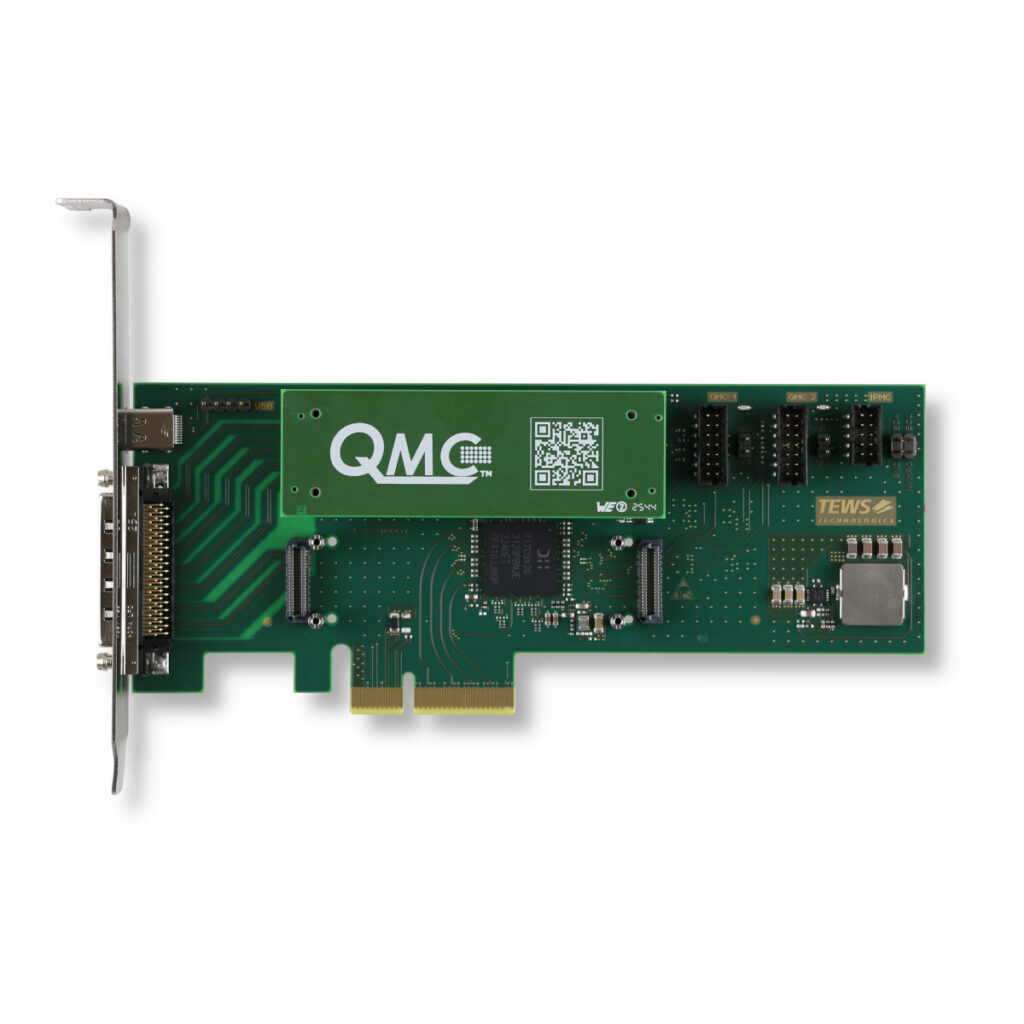

TPCE210 - Dual QMC Carrier

Dual QMC Carrier

  • Low-Profile PCIe Card
  • 2 QMC Slots
  • VHD68 Front I/O Connector
  • Operating temperature -40 °C to +85 °C
TA307 I Cable Kit for Modules with VHD68 / SCSI-V Connector

Cable Kit

  • 68 pin terminal block
  • 1.8 m cable with VHD68 SCSI-V male and HD68 SCSI-3 male connector

Device Driver

A Device Driver will be included to allow applications simple access to the UART QMC module. All functions are well documented in the User Manual and come along with example code.
