TPMC310

Conduction Cooled PMC with isolated 2 x CAN Bus

  • Conduction cooled single-width 32 bit PMC module
  • 2 independent isolated CAN bus channels
  • CAN specification 2.0B supported
  • On board termination option (solder pads)
  • P14 I/O

Product status: Active

Operating Temperature Range -40 °C to +85 °C RoHS compliant

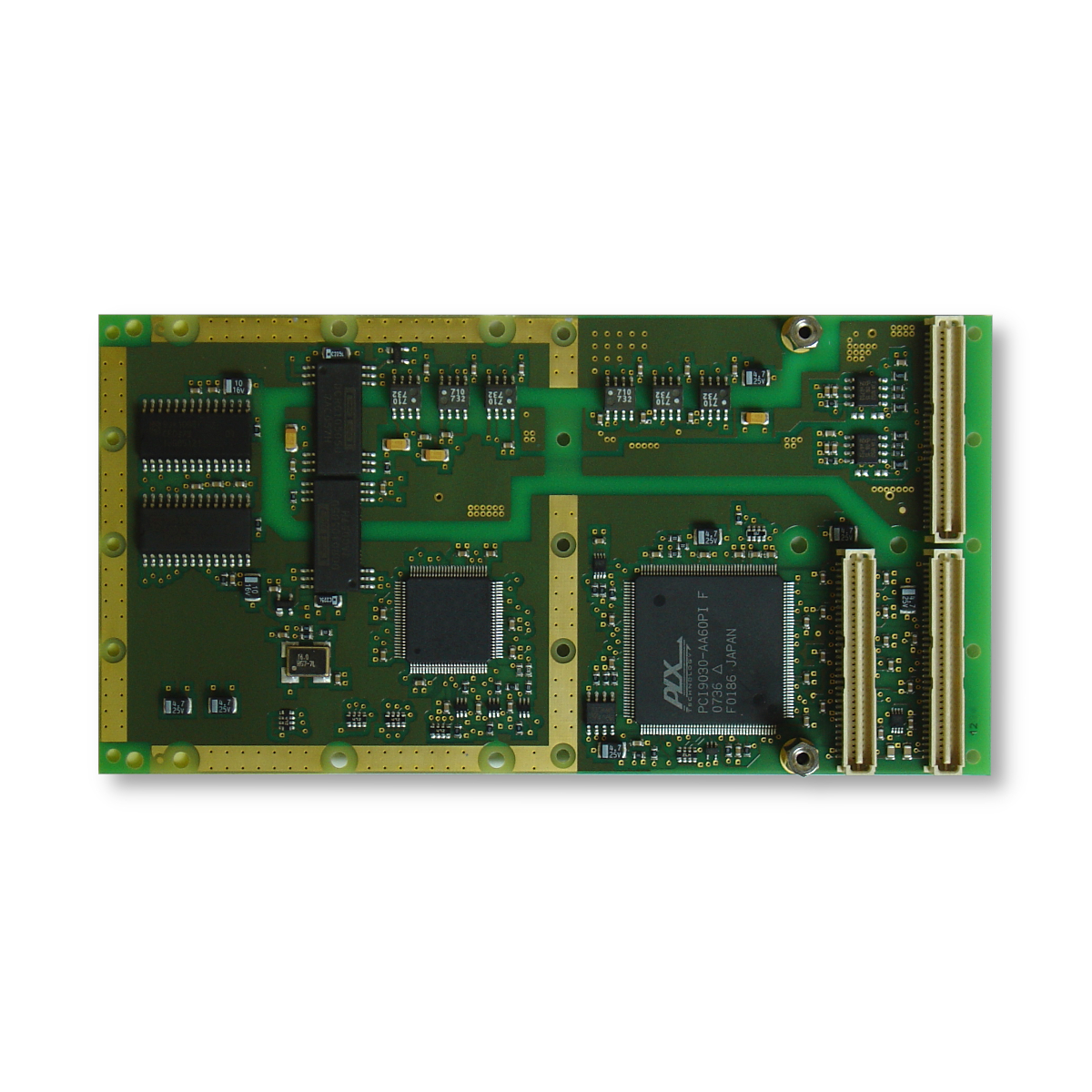

The TPMC310 is a conduction cooled single-width 32 bit PMC module providing two channel of high speed CAN bus interface.

The PLX PCI9030 PCI Target Chip is used for the PCI interface.

Two Philips SJA1000 CAN controllers (CAN specification 2.0B supported) are used for the two CAN bus channels.

The CAN bus I/O interface provides two independent channels, isolated from system logic and from each other.

CAN High Speed transceivers are used for the CAN bus I/O interface. An on board termination option (solder pads) is provided for each CAN bus channel allowing to configure on board termination and pass through mode for the CAN bus.

The TPMC310 uses the P14 I/O connector for the CAN bus I/O interface.

Software support (TDRV010-SW-xx) for different operating systems is available.

Mechanical Interface PCI Mezzanine Card (PMC) Interface; Conduction Cooled; Single Size
Electrical Interface PCI Rev. 2.1 compliant, 33 MHz / 32 bit PCI, Universal PCI Signaling Voltage (3.3V and 5V tolerant)
PCI Target Chip PCI 9030 (PLX Technology)
CAN Controller 2 x Philips SJA1000 (16 MHz)
CAN Bus Transceiver 2 x Philips TJA1050
Number of CAN Bus Channels 2 (isolated from system logic and from each other)
CAN Bus Interface CAN High Speed
The TJA1050 High-Speed CAN Transceiver supports baud rates from 60 kbaud up to 1 Mbaud
I/O Connector PMC P14 I/O (64 pin Mezzanine connector)
Power Requirements 50mA max. @ +3.3V DC
150mA max. @ +5V DC
Temperature Range Operating: -40 °C to +85 °C
Storage: -55 °C to +125 °C
Weight 75 g
Humidity 5 – 95% non-condensing
MTBF 372 000 h

PRODUCT VARIATIONS

TPMC310-10R

ccPMC, 2 x isolated CAN Bus based on Philips SJA1000, ISO11898 Can High Speed, P14 I/O

2 channel isolated CAN Bus; Standard and extended frame support; CAN-HIGH-SPEED (ISO11898); Optically isolated interfaces; Rear I/O; Conduction Cooled

ACCESSORIES

PIM I/O Module with 50 pin Connector

SOFTWARE

Device Driver for CAN Bus Board Family with SJA1000 Controller
