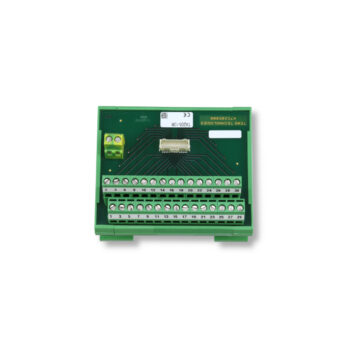

Pico-Clasp Terminal Block

  • 30 pin terminal block
  • Pico-Clasp connector

Product status: Active

Operating Temperature Range -40 °C to +85 °C RoHS compliant

The TA205 is used as a standard interface to connect TEWS modules with Pico-Clasp connector to other system devices. The Pico-Clasp Terminal Block is therefore an essential wiring interface for prototyping and in the same way for machine and peripheral equipment.

The TA205 has a universal socket and may simply mount on standard EM mounting rails as a compact terminal strip. The screw connections of the used terminal block have a nominal cross section of 2.5 mm².

An additional screw connector provides a possibility to connect i.e. a cable shield with an external case ground.



Pico-Clasp Terminal Block

30 pin terminal block; Pico-Clasp connector
