TAMC002-TM

MTCA.4 Rear-I/O µRTM for TAMC220

Micro Rear Transition Module compatible to TAMC220
The I/O lines are routed to
- 3x VHD68 SCSI-V connectors
- 3x 50 pin flat cable connectors
MTCA.4 compliant
- Provides I2C EEPROM
- Provides I2C temperature sensor
- Provides I2C I/O Extender device
Available as mid- and full-size

Last-Time-Buy date:

30/06/2020

Product status: Discontinued

Operating Temperature Range -40 °C to +85 °C

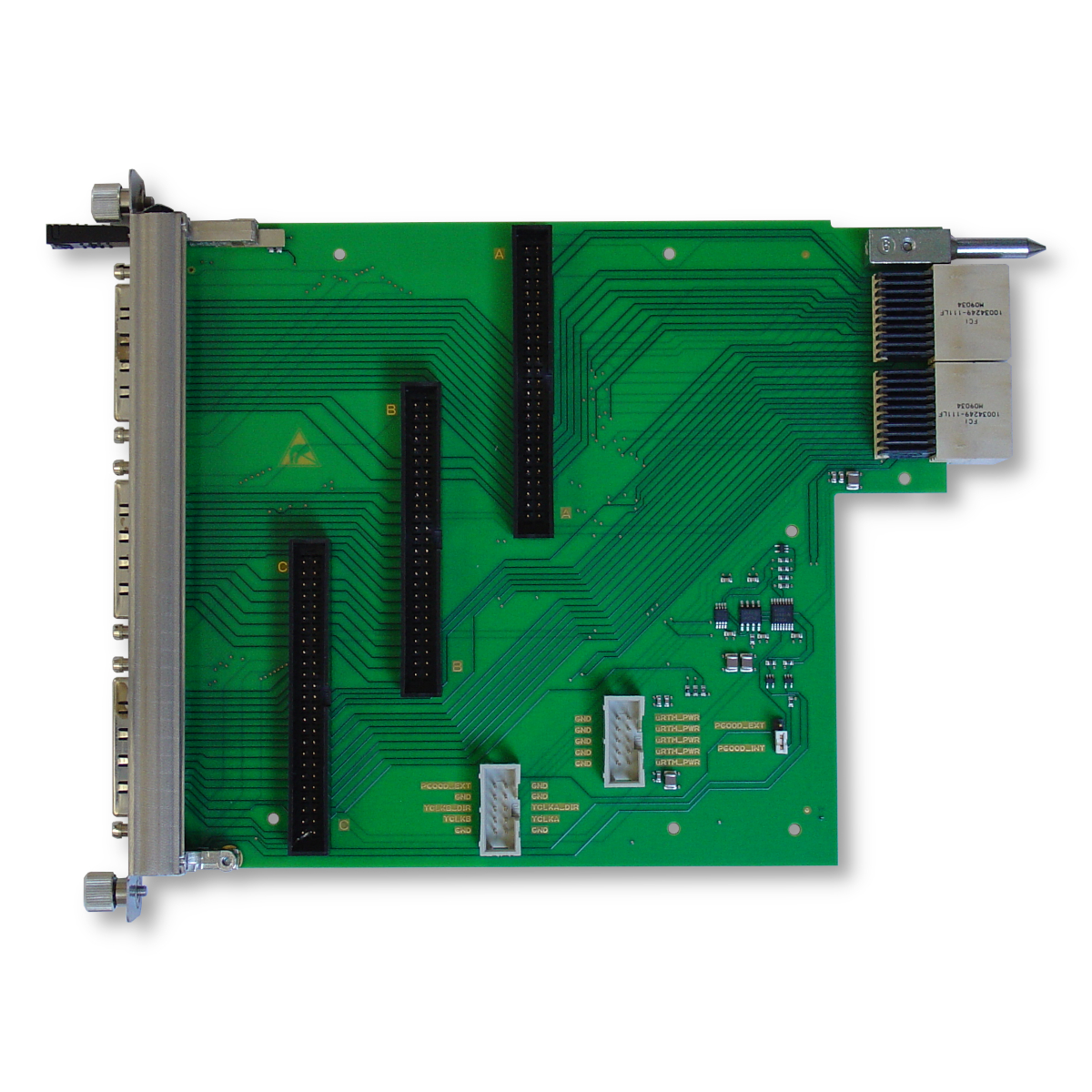

The TAMC002-TM is a standard Mid-Size/Full-Size MTCA.4 compliant Micro Rear Transition Module compatible to the TAMC220.

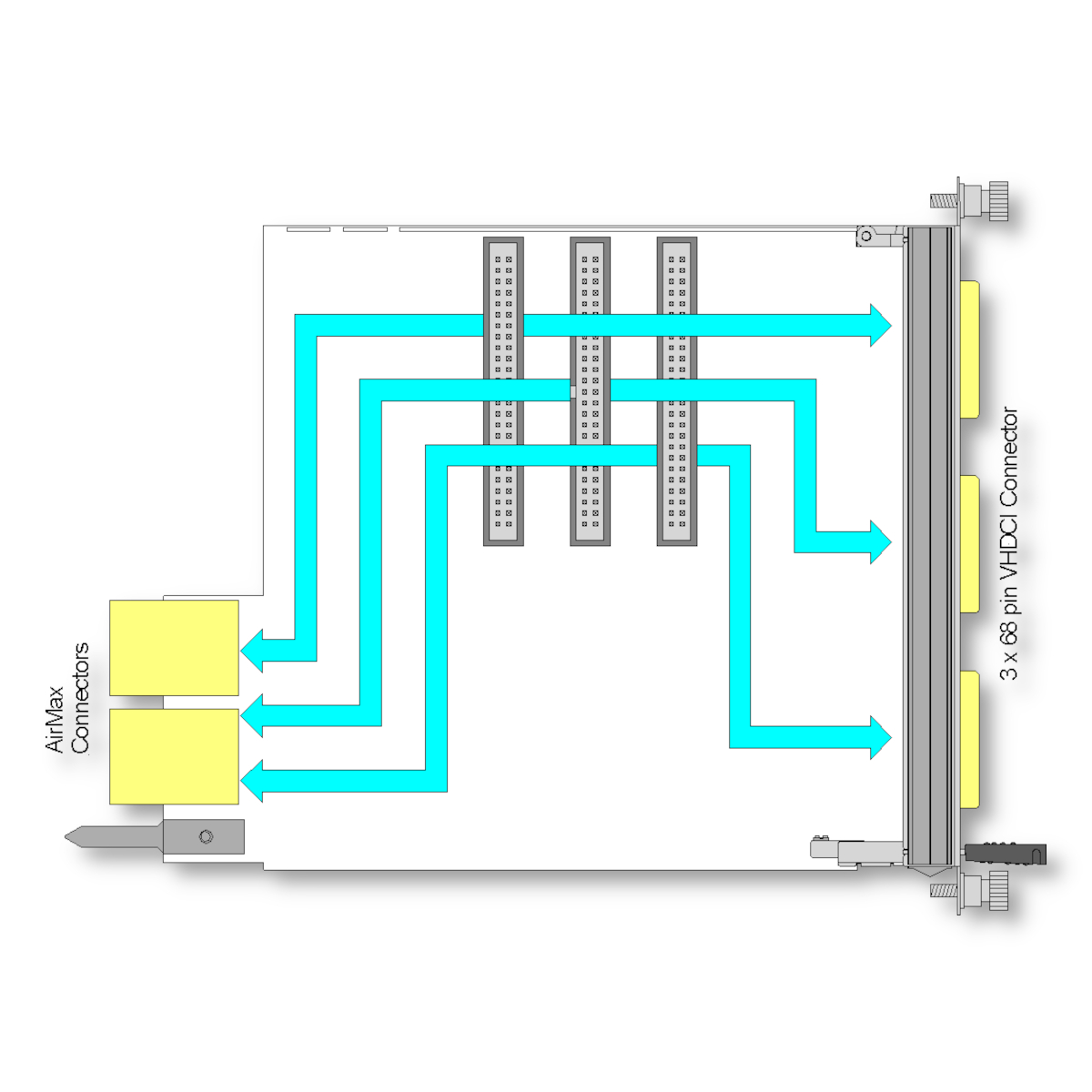

Two AirmaxVS connectors provide access to all IP I/O lines of the TAMC220. The I/O lines are routed to three VHD68 SCSI-V connectors in the front panel and also to three 50pin flat cable connectors that may be used for rack internal wiring or laboratory use.

According to MTCA.4, the TAMC002-TM provides an I2C EEPROM, an I2C temperature sensor and an I2C I/O Extender device. The I/O Extender is used to provide various management signals on the µRTM, with the management being handled by the MMC of the TAMC220.

Mechanical Interface	MTCA.4 Micro Rear Transition Module conforming to MTCA.4 Module Type: Double Mid-Size Module (-10R) Module Type: Double Full-Size Module (-11R)
IPMI Version	1.5
Front Panel LEDs (TAMC220 MMC controlled)	Blue Hot-Swap LED Red Failure Indication LED (LED1) Green Board OK LED (LED2
I2C I/O Extender	PCA9534 (Texas Instruments)
I2C EEPROM	M24C32 (ST Microelectronics)
I2C Temperature Sensor	LM75 (National Semiconductor)
Front Panel	3 x VHD68 SCSI-V connector, one for each IP slot on the TAMC220
On board I/O	3 x 50-pin flat cable connectors, on for each IP slot on the TAMC220
Power Requirements	Management Power: 15mA typical @ +3.3V DC Payload Power: 0A @ +12V DC max. Current Draw as per Module Current Requirements record: 0A
Temperature Range	Operating -40°C to +85C Storage -40°C to +85°C
Humidity	5-95 % non-condensing
MTBF	448000 h
Weight	200 g

PRODUCT VARIATIONS

TAMC002-TM-10R Discontinued	Mid-Size MTCA.4 Rear I/O µRTM for TAMC220 MTCA.4 Rear I/O µRTM for TAMC220; Double Mid-Size; Panel I/O via 3 VHD68 connectors
TAMC002-TM-11R Discontinued	Full-Size MTCA.4 Rear I/O µRTM for TAMC220 MTCA.4 Rear I/O µRTM for TAMC220; Double Full-Size; Panel I/O via 3 VHD68 connectors

ACCESSORIES

TA109

VHD68 / SCSI-V to HD68 / SCSI-3 Cable

TA203

HD68 / SCSI-3 Terminal Block

TA307

Cable Kit for Modules with VHD68 / SCSI-V Connector
