TCP462

4 Channel RS232/RS422 Serial Interface

  • Standard 3U 32 bit CompactPCI module
  • 4 channels RS232 and/or RS422 interfaces
  • High performance asynchronous serial interface (up to 5.5296 Mbps)
  • Hardware handshake and full modem support available
  • 64 byte FIFO
  • Front panel I/O (HD50 SCSI-2 type connector)
  • Optional J2 rear I/O

Product status: Active

Operating Temperature Range -40 °C to +85 °C RoHS compliant

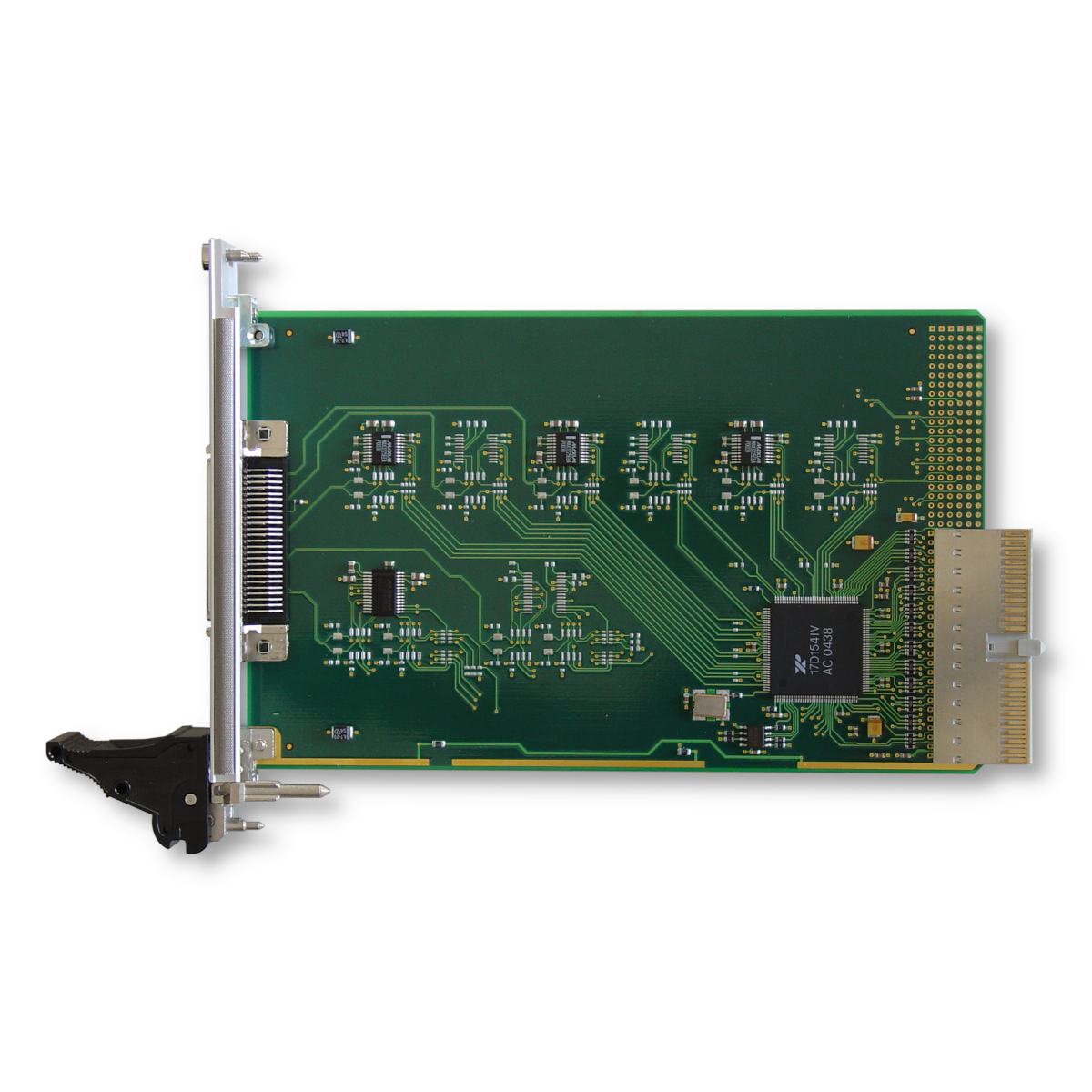

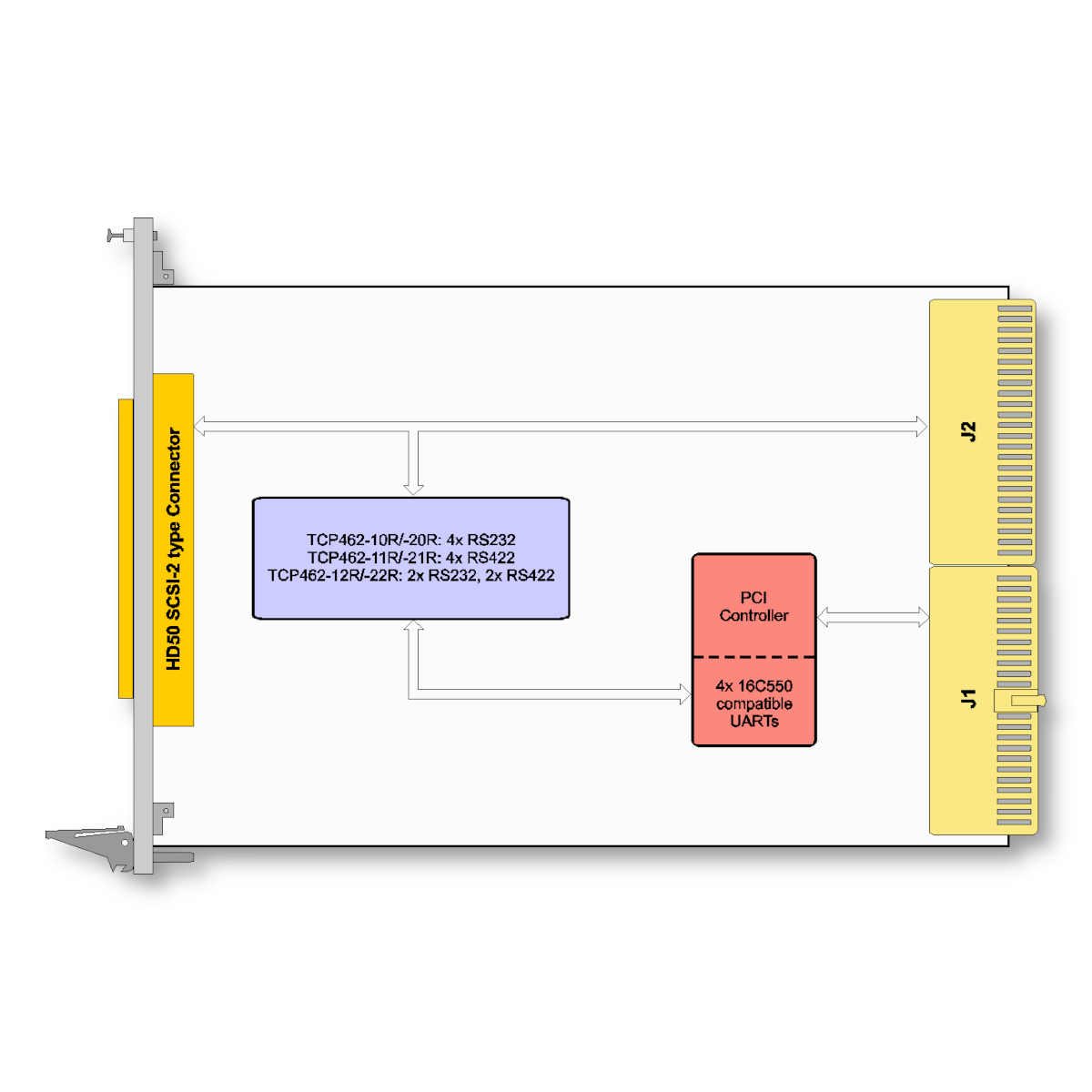

The TCP462 is a standard 3U 32 bit CompactPCI module and offers 4 channels of high performance asynchronous serial interface.

Three different standard modules are available: The TCP462-10R provides 4 RS232 interfaces. The TCP462-11R provides 4 RS422 interfaces. The TCP46212R provides 2 RS232 and 2 RS422 interfaces.

Other configurations are available as factory build option on a per channel base.

All modules offer front panel I/O with a HD50 SCSI-2 type connector. The TCP462-2xR modules offer additional J2 rear I/O. Each RS232 channel supports RxD, TxD, RTS, CTS and GND. Each RS422 channel supports RxD+/-, TxD+/- and GND. One channel of the TCP462-x0R/-x2R offers full modem support (TxD, RxD, CTS, RTS, DSR, DTR, CD, RI and GND) for RS232. One channel of the TCP462-x1R supports RxD+/-, TxD+/-, RTS+/-, CTS+/- and GND for RS422.

Each channel has 64 byte transmit and receive FIFOs to significantly reduce the overhead required to provide data to and get data from the transmitters and receivers. The FIFO trigger levels are programmable and the baud rate is individually programmable up to 921.6 kbps for RS232 channels and 5.5296 Mbps for RS422 channels. The UART offers readable FIFO levels.

All channels generate interrupts on CompactPCI interrupt INTA. For fast interrupt source detection the UART provides a special Global Interrupt Source Register.

All serial channels use ESD protected transceivers up to ±15KV.

The TCP462 can operate with 3.3V and 5.0V PCI I/O signaling voltage.

Software Support (TDRV002-SW-xx) for different operating systems is available.

Mechanical Interface Standard 3U 32 Bit CompactPCI module conforming to PICMG 2.0 R3.0
Electrical Interface PCI Rev. 2.3 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling Voltage
PCI Target Chip Exar XR17D154
UART Exar XR17D154
Transceiver RS232: MAX3225E (or equivalent)
RS232 Full Modem: MAX3245E (or equivalent)
RS422: MAX3087E (or equivalent)
Interface Type Asynchronous serial interface
Number of Channels 4
Physical Interface TCP462-10R/-20R: 4 RS232 (1 x with Full Modem)
TCP462-11R/-21R: 4 RS422 (1 x with RTS & CTS)
TCP462-12R/-22R: 2 RS232 (1 x with Full Modem), 2 RS422
Serial Channel /O Signals RS232: TxD, RxD, RTS, CTS, GND
RS232 Full Modem: TxD, RxD, RTS, CTS, DTR, DSR, CD, RI, GND
RS422: TxD± , RxD±, GND (TCP462-11x/-21x: RTS±, CTS±)
Termination RS422: 120 ohms between RxD+ and RxD- of each channel (TCP462-11R/-21R: also between CTS+, CTS-)
Programmable Baud Rates RS232: up to 921.6 kbps
RS422: up to 5.5296 Mbps
ESD Protection RS232: ±15kV – Human Body Model, ±8kV – IEC 1000-4-2, Contact Discharge, ±15kV – IEC 1000-4-2, Air-Gap Discharge
RS422: ±15kV – Human Body Model
FIFO 64 byte transmit FIFO, 64 byte receive FIFO per channel
I/O Interface HD50 SCSI-2 type female connector (e.g. AMP# 787395-5)
TCP462-2xR: additional 110 pol. CompactPCI back I/O (J2)
Power Requirements 1) 30 mA to 40 mA typical @ +5V DC (no load)
Temperature Range Operating: -40 °C to +85 °C
Storage: -55 °C to +125 °C
MTBF 1) 540 000 h to 670 000 h
Humidity 5 – 95% non-condensing





1) depends on variant, for further details see User Manual

PRODUCT VARIATIONS

TCP462-10R

4 Channel Serial RS232, Front I/O

4 RS232 serial interfaces with hardware handshake; 1 channel with full modem support; baudrates up to 921.6 kbps; Front I/O via HD50/ SCSI-2 connector
TCP462-11R

4 Channel Serial RS422, Front I/O

4 RS422 serial interfaces; 1 channel with hardware handshake; baudrates up to 5.5296 Mbps; Front I/O via HD50/ SCSI-2 connector
TCP462-12R

2 Channel Serial RS232, 2 Channel Serial RS422, Front I/O

2 RS232 serial interfaces with hardware handshake; 1 channel with full modem support; baudrates up to 921.6 kbps; 2 RS422 serial interfaces; baudrates up to 5.5296 Mbps; Front I/O via HD50/ SCSI-2 connector
TCP462-20R

4 Channel Serial RS232, Front and Rear I/O

4 RS232 serial interfaces with hardware handshake; 1 channel with full modem support; baudrates up to 921.6 kbps; Front I/O via HD50/ SCSI-2 connector; J2 Rear I/O
TCP462-21R

4 Channel Serial RS422, Front and Rear I/O

4 RS422 serial interfaces; 1 channel with hardware handshake; baudrates up to 5.5296 Mbps; Front I/O via HD50/ SCSI-2 connector; J2 Rear I/O
TCP462-22R

2 Channel Serial RS232, 2 Channel Serial RS422, Front and Rear I/O

2 RS232 serial interfaces with hardware handshake; 1 channel with full modem support; baudrates up to 921.6 kbps; 2 RS422 serial interfaces; baudrates up to 5.5296 Mbps; Front I/O via HD50/ SCSI-2 connector; J2 Rear I/O

ACCESSORIES

HD50 / SCSI-2 Cable

HD50 / SCSI-2 Terminal Block

Cable Kit for Modules with HD50 / SCSI-2 Connector

Front panel extension for 3U cPCI boards

SOFTWARE

Device Driver for Multiple Channel Serial Interface Family

Data Sheet

Data Sheet

Data Sheet - Issue 1.0.1

User Manual

User Manual - Issue 1.0.6
