3U CompactPCI Serial PMC Module Carrier

  • PICMG CPCI-S.0 R2.0 compatible 3U module
  • cost effective solution to provide I/O in CompactPCI Serial environment
  • flexible I/O (TEWS offers a wide range of I/O PMCs)
  • supports one single-width 32 bit PMC
  • provides front panel I/O
  • 33 MHz and 66 MHz PCI frequency

Product status: Active

Operating Temperature Range -40 °C to +85 °C RoHS compliant

The TCPS260 is a PICMG CPCI-S.0 R2.0 compatible 3U module that provides one slot for a single-width PMC module used to build modular, flexible and cost effective I/O solutions for all kinds of applications like process control, medical systems, telecommunication and traffic control.

The TCPS260 is a versatile solution to upgrade well known PMC I/O solutions to the CompactPCI Serial standard.

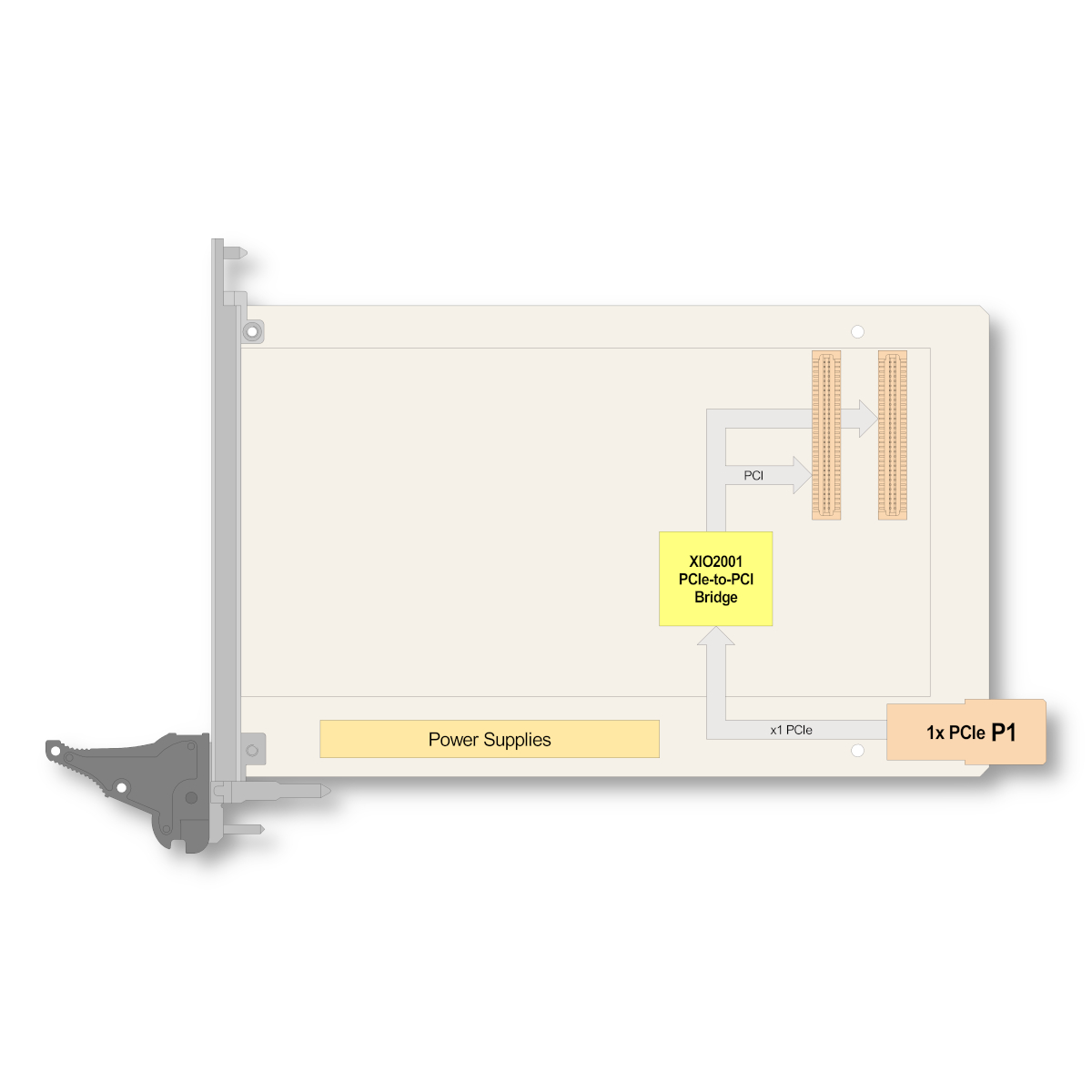

The bridging between the system host board and the PMC slot is handled by a transparent PCIe-to-PCI Bridge. The Bridge provides an x1, Rev. 2.0 PCIe link with 2.5 Gbps signaling rate.

On the PMC side, PCI signaling voltages of 3.3V and 5V are supported; 3.3V signaling is default. 32-bit PCI accesses are possible with 33MHz or 66MHz. The TCPS260 supports PMC front-panel I/O.

compactPCI Serial Compact Serial 3U Front Board conforming to PICMG CPCI-S.0 R2.0

PCIe: x1 link, USB: not supported, SATA: not supported, I²C, WAKE, GA[0:3]: not supported

PCI (PMC Slot) Single Size PCI Mezzanine Card (PMC) conforming to IEEE Std 1386-2001, IEEE Std 1386.1-2001

PCI Rev. 2.3 compliant, 33/66 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling Voltage

Number of PMC Slots 1
PMC I/O Access PMC Front Panel I/O
PCI Express-to-PCI Bridge XIO2001 (Texas Instruments)
Power Requirements 25 mA typical @ +12 V DC (without PMC)
Additional power is required by the PMC Module!
Maximum Power for PMC Slot 3 A maximum @ +3.3V DC
3 A maximum @ +5V DC
Connected to the backplane 12V @ +12V DC
200 mA maximum @ -12V DC
Temperature Range Operating: -40°C to + 85°C, Storage: -40°C to + 85°C
MTBF 672000 h
Weight118 118 g
Humidity 5-95 % non-condensing
