TPCE277

PCI Express x1, Gen3 XMC Carrier

  • Standard height PCI Express Revision 3.0 compatible module
  • Cost effective solution to provide I/O in PCI Express environment
  • Flexible I/O (TEWS offers a wide range of I/O XMCs)
  • Supports 1 single-width XMC
  • Provides front panel I/O
  • PCI Express x1 from host board to XMC
  • PCIe Gen3 Redriver allows safe operation of XMC module in distributed PCIe systems

Product status: Active

The TPCE277 is a standard height PCI Express Revision 3.0 compatible module that provides one slot for a single-width XMC module used to build modular, flexible and cost effective I/O solutions for all kinds of applications like process control, medical systems, telecommunication and traffic control.

The TPCE277 is a versatile solution to upgrade well known XMC I/O solutions to the PCI Express signalling standard.

The PCI Express x1 link from the host board to the XMC module is improved by a PCIe Gen3 Redriver, allowing safe operation of XMC modules on PCIe mainboards.

VPWR is selectable via order option. The TPCE277-x0R variants provide for 12V VPWR and the TPCE277-x1R order options provide 5V VPWR.

The TPCE277 supports XMC front panel I/O.

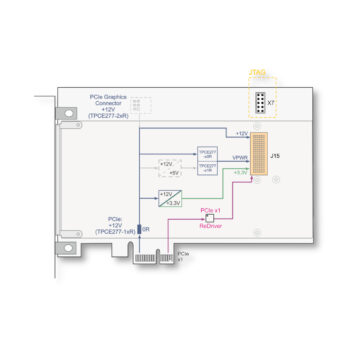

The PCIe edge card connector provides +12V and +3.3V. The TPCE277-1xR uses the +12V of the PCIe edge card connector to generate all power supply voltages for the XMC slot (+3.3V, VPWR and +12V). According to the PCIe specification, a PCIe x1 card is limited to 6W on the +12V which allows to operate many of the available XMC modules on the TPCE277-1xR.

For increased power requirements of an XMC module, the TPCE277-2xR offer a PCIe Graphics Power Connector to supply the +12V for generating all the power supply voltages for the XMC slot providing power of up to 25W.

A 10-pin JTAG header is available for XMC module debugging purposes. All five JTAG signals are routed directly to the XMC slot.

PCI Express PCI Express x1, Revision 3.0; Standard Height; Full Length
XMC Slot ANSI/VITA 42.0-2008 (R2014); ANSI/VITA 42.3-2006 (R2014); Single-Width
Number of XMC Slots 1
XMC I/O Access XMC Front Panel I/O
PCI Express ReDriver DS80PCI102 (Texas Instruments)
Power Requirements 15mA typical @ +3.3V DC
50mA typical @  +12V DC
Additional power is required by the XMC Module!
Power Stable for XMC Slot The power supply for the XMC slot is stable approx. 5ms after the system power supply is stable
Maximum Power for XMC Slot The maximum power available for an XMC module is variant dependent.
Temperature Range Operating:  -40 °C to + 85 °C
Storage: -40 °C to + 85 °C
MTBF 1) 1 216 000 h to 1 764 000 h
Humidity 5-95 % non-condensing
Weight 1) 75 g to 81 g



1) depends on variant, for further details see User Manual

PRODUCT VARIATIONS

TPCE277-10R

1 Slot PCI Express XMC Carrier, PCIe x1, VPWR 12 V

1 Slot PCI Express XMC Carrier; PCIe x1; VPWR = 12 V; +12 V Power Supply via PCIe connector; XMC front panel I/O

TPCE277-11R

1 Slot PCI Express XMC Carrier, PCIe x1, VPWR 5 V

1 Slot PCI Express XMC Carrier; PCIe x1; VPWR = 5 V; +12 V Power Supply via PCIe connector; XMC front panel I/O

TPCE277-20R

1 Slot PCI Express XMC Carrier, PCIe x1, VPWR 12 V, 12 V from PCIe Graphics Power connnector

1 Slot PCI Express XMC Carrier; PCIe x1; VPWR = 12 V; +12 V Power Supply via external PCIe Graphics Power connector; XMC front panel I/O

TPCE277-21R

1 Slot PCI Express XMC Carrier, PCIe x1, VPWR 5 V, 12 V from PCIe Graphics Power connnector

1 Slot PCI Express XMC Carrier; PCIe x1; VPWR = 5 V; +12 V Power Supply via external PCIe Graphics Power connector; XMC front panel I/O
